Task:

• Separation of hydrogen sulphide from the biogas produced in a 7 MW plant that runs on agricultural natural resources
• Mitigating corrosion in the downstream equipment that is passed-through by the biogas

System parameters:

• Pollutant concentration: 150 ppm of H₂S
• Flow rate: 1,500 m³ per hour

Solution:

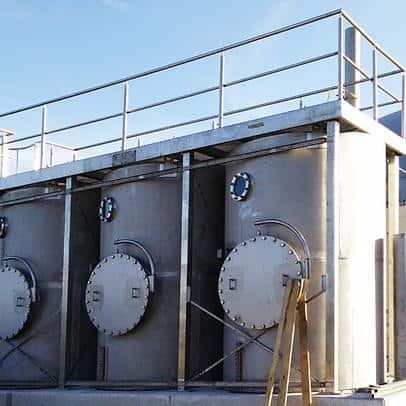

• UGN®-BEKOM 5.0 gas desulphurisation system made of stainless steel
• 2× 5 m³ of UgnCleanPellets® S 3.5 filtering material

Special features:

• After treatment, the desulphurised gas is fed into the proprietary network and used in the operator’s CHP plants for heat and power generation.
• Additional exhaust air filter (1× 5 m³ of UgnCleanPellets® S 1.0 filtering material for odour control in the regeneration air from the gas desulphurisation process)
